4. What are primitives

4.1. Primitives and primitive sets

A primitive is a data reduction step involving a transformation of the data or providing a service. By convention, the primitives are named to convey the scientific meaning of the transformation. For example biasCorrect will remove the bias signal from the input data.

A primitive is always a member of a primitive set. It is the primitive set that gets matched to the data by the Recipe System, not the individual primitives.

Technically, a primitive is a method of a primitive class. A primitive class gets associated with the input dataset by matching the astrodata tags. Once associated, all the primitives in that class, locally defined or inherited, are available to reduce that dataset. We refer to that collection of primitives as a “primitive set”.

All the primitives are currently found in the Python package geminidr. In there, there is a large inheritance tree of primitive classes from very generic to very specific.

For example, NIRI images will be associated with the NIRIImage primitive set. This set contains all the primitives it needs through primitives defined in NIRIImage itself and through its inheritance tree. We illustrate that tree in Figure 1.

../../_images/NIRIImageInheritanceTree.png

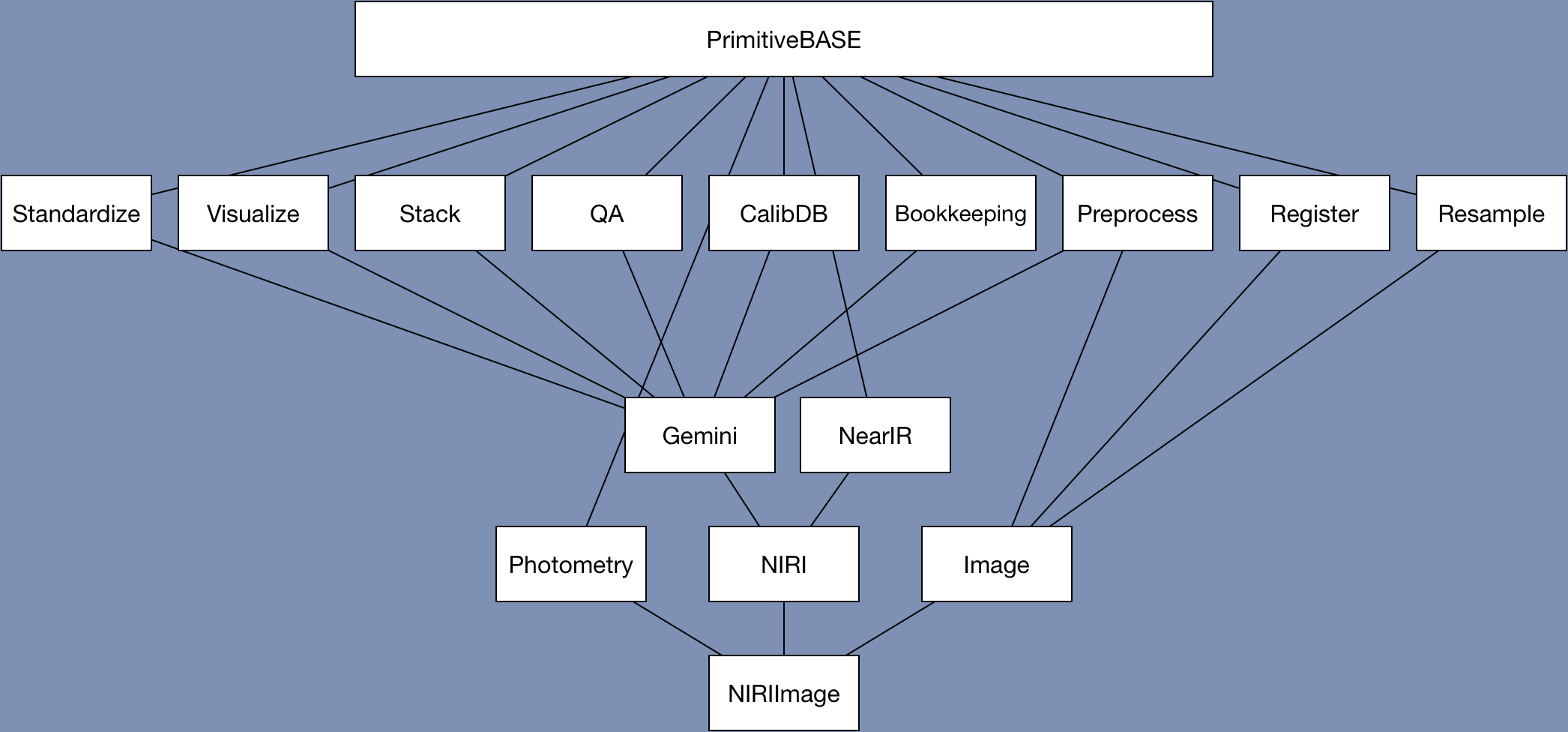

Figure 1: NIRIImage inheritance tree.

Once the primitive set is identified, DRAGONS will send that to the selected recipe as that p argument we saw in the previous chapter.

4.2. Primitive input parameters

Also attached to a primitive set are the input parameters for each primitives and the defaults appropriate for that primitive set, that is for that type of data.

For the same generic primitive, the default values for input parameters for NIRI data can be different from the defaults applicable to GMOS data. Even the set of available input parameters can be different, though we try to keep things as uniform as possible.

We will learn later how to customize the values of input parameters. The first step however is to see what the input parameters are and what their default values are. This is done with the showpars command.

Because the input parameters can be different for different type of data, the command requires the name of file, and then of course the name of the primitive you want to learn about.

The command signature is as follow:

showpars filename primitive_name

Exercise - Primitives 1

Using the science frame N20160102S0270.fits located in directory playdata/example1, find the answer to the questions below. First, show the recipe for that file to see the list of primitives. (Hint: showrecipes)

  1. What is the default operation used to combine the sky frames during sky correction?

  2. Which parameter from which primitive do I need to modify to turn off the dark correction?

  3. Which parameter from which primitive do I need to modify to change the rejection method during the final stacking of the frames? What are the available options?

[Solution]
